Clearview Easy Slide™

Easy access to cold food and drinks no matter where you’re going

What is the Clearview Easy Slide™?

The Clearview Easy Slide™ is an ADR and OHS compliant quality-designed product that can be easily installed in your vehicle, so you have easy access to cold food and drinks no matter where you’re going. This state-of-the-art fridge lowering slide is easy to use and access from the back of your vehicle or from within your canopy.

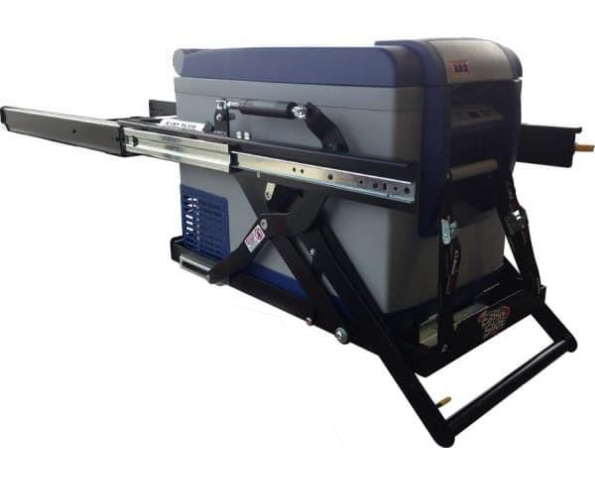

Simply unlock the travel lock mechanism, pull down on the yellow ergonomic slide quick release runner levers and pull the fridge towards you to full extension. A gas strut-assisted vertical scissor lift action and safety latch system then allows for safe and easy lowering of your fridge, providing convenient access to its contents.

  • Smoothly lowers the fridge up to 290mm, with the option of 3 different platform heights to choose from.
  • Unobtrusive handle allows for uninterrupted access to your fridge
  • 180Kg load rating to support a fully loaded fridge or our very own kitchen/pantry (Use ES100-PLUS model)
  • Quick release double runners and heavy duty Travel Lock that is guaranteed not to rattle!
  • Safety locking mechanism prevents sudden upward/downward movements
  • Monster 1500N gas struts neutralise fridge weight
  • Patented Aussie Design
  • Crash tested and ADR compliant
  • Adjustable Fridge Cage available to suit
  • 37kg net weight – 40Kg gross weight when packaged

COMES IN THREE SIZES

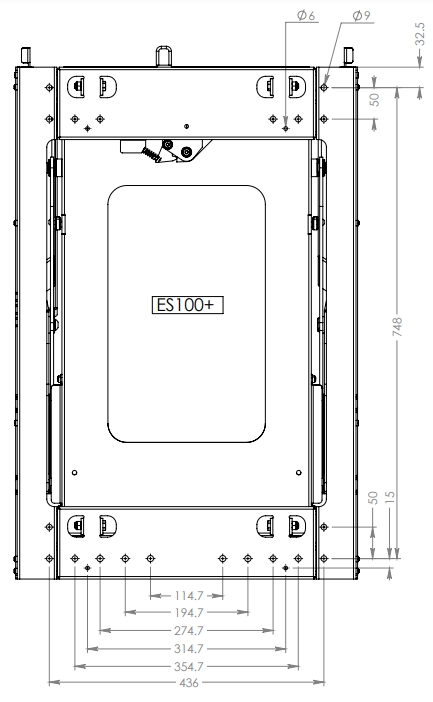

ES-100 PLUS

BASE DIMENSIONS
813mm x 550mm

BASE DIMENSIONS INCLUDING LOCK LENGTH
846mm x 550mm

TRAY DIMENSIONS
738mm x 390mm

SLIDE TRAVEL
933mm

$979.00

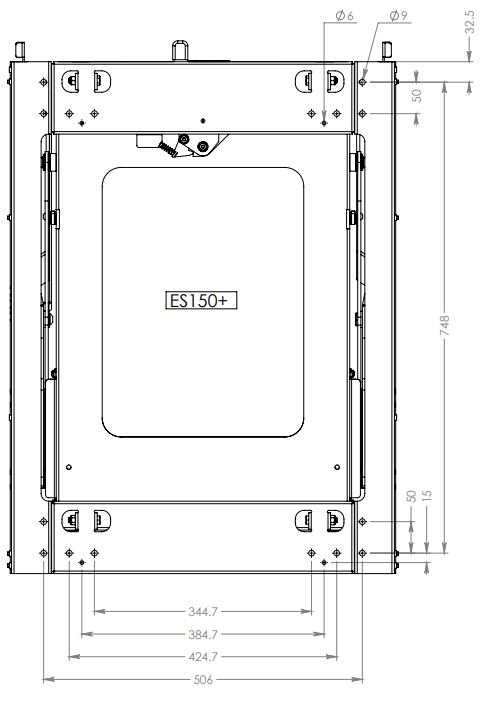

ES-150 PLUS

BASE DIMENSIONS
813mm x 620mm

BASE DIMENSIONS INCLUDING LOCK LENGTH
846mm x 620mm

TRAY DIMENSIONS
738mm x 460mm

SLIDE TRAVEL
933mm

$1,029.00

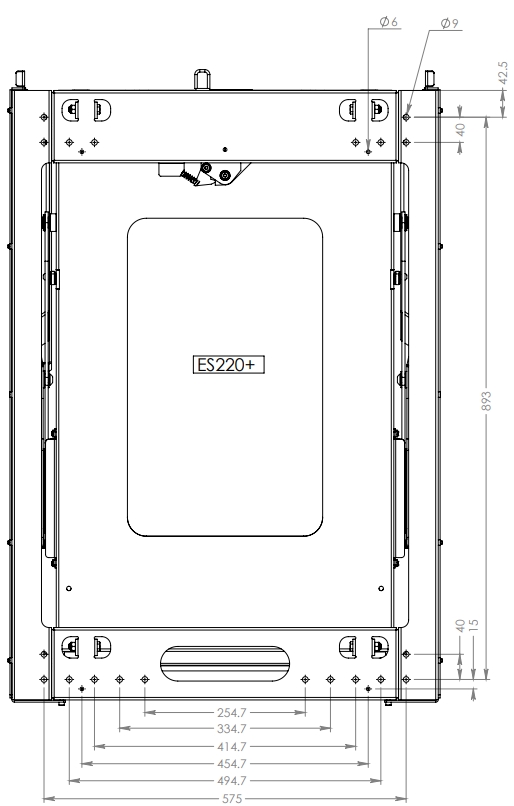

ES-220 PLUS

BASE DIMENSIONS
965mm x 690mm

BASE DIMENSIONS INCLUDING LOCK LENGTH
1005mm x 690mm

TRAY DIMENSIONS
885mm x 530mm

SLIDE TRAVEL
1085mm

$1,079.00

Find the Best-Fit Slide For Your Fridge

The Clearview Easy Slide™ tray dimensions are critical in determining which Clearview Easy Slide™ is the best fit for your travel fridge.

Choose your fridge brand and model to find which Clearview Easy Slide™ is right for you.

Want to see all of the dimesions of our Easy Slide?

Installation Guide

This Step by step Guide will show you exactly how to fit a Clearview Easy Slide® to a vehicle drawer system in your vehicle.

User Guide

Find everything you need for safe slide usage and installation.

Technical Specifications

Looking for the exact dimensions of our Easy Slide®? Find everything you need with our PDF technical specification.
